Product Detail

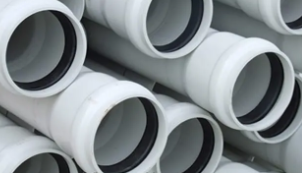

UPVC Pipe for Water Supply- Metric

UPVC Pipe for Water Supply- Metric
Pressure ： 0.6 Mpa to 2.5 Mpa
Size ： DN20-800mm
Standard ： BS EN ISO, 1452 ISO4422，GB/T 10002.2-2003,
Packing ： 11.8m, or 5.8m/pcs
Delivery ： 7-15 days depending on the total quantity
Color ： White，Gray,Other colors can be customized.
Inspection ： Raw material inspection.Finished product inspection.Third party inspection on request.
Fittings ： Coupling,bend,reducer,tee,etc.
Joint ： Solvent Cement Joints  Rubber Ring Threaded Fittings Flange Fittings
 Inquiry
Details

Standard of UPVC pipe for water supply

Type

Product Standards

(DIN)UPVC Fittings For Water Supply

GB/T 10002.2-2003

BS EN ISO 1452 ISO4422

(DIN)UPVC Pipe For Water Supply

GB/T 10002.2-2003, BS EN ISO, 1452 ISO4422

(DIN)CPVC Pipes For Water Supply

GB/T 18993.2-2003

Introduction

l Standard Length: at any lengths as per your request

l Color: gray, white, blue, orange or any other color on request

l Specific Gravity: 1330--1460 kg/m³

l Working Pressure: from 0.6 Mpa to 2.5 Mpa; sch40, sch80; 2 bar to 25 bar; PN 6 to PN 25, class B to class7

l O.D.: from 16mm to 800mm; from 1/2 inch to 24 inch.

l Connection: Rubber ring or solvent cement

l Supports standard: ASTM, DIN, JIS, BS, AS/NS, EN

l Support OEM and ODM

Temperature and working pressure curve

Working temperature ℃

Compensation coefficient

0<t<25

1.0

25<t<35

0.8

35<t≤45

0.63


Physical and Mechanical Properties

item

Pipe

Fittings

Density

1350-1460kg/m³


Vicat Softening Temperature

≥80℃

≥74 ℃

Longitudinal Retraction Rate

≤5%


Soaking in Dichloromethane (15C,15min）

No damage on The surface of sample


Oven Test


Conform to GB/T8803-2001

Falling Weight Impact Test

≤5%


Hydraulic Pressure test

No rupture,no leakage

No rupture,no leakage

System Suitability Test

No rupture,no leakage

No rupture,no leakage

Drop Test


No rupture

Specification of DIN (ISO,GB/T) Standard   PVC-U Pipe   GB/T10002.1-2006 unit:mm



 D e

Nominal

Outside

Diameter Dn

Nominal Pressure   PN(kg/cm2)

   0.63MPa S16

0.80MPa S12.5

1.00MPa S10

1.25MPa S8

1.60MPa S6.3

   2.0MPa S5

   2.5MPa S4

emin

Tolerance

emin

Tolerance

emin

Tolerance

emin

Tolerance

emin

Tolerance

emin

Tolerance

emin

Tolerance

20









2.0

0.4

2.0

0.4

2.3

   0.5

25





一

一

2.0

0.4

2.0

0.4

2.3

0.5

2.8

   0.5

32





2.0

0.4

2.0

0.4

2.4

0.5

2.9

0.5

3.6

   0.6

40

2.0

0.4

2.0

0.4

2.0

0.4

2.4

0.5

3.0

0.5

3.7

0.6

4.5

   0.7

50

2.0

0.4

2.0

0.4

2.4

0.5

3.0

0.5

3.7

0.6

4.6

0.7

5.6

   0.9

63

2.0

0.4

2.5

0.5

3.0

0.5

3.8

0.6

4.7

0.8

5.8

0.9

7.1

   1.1

75

2.3

0.5

2.9

0.5

3.6

0.6

4.5

0.7

5.6

0.9

6.9

1.1

8.4

   1.3

90

2.8

0.5

3.5

0.6

4.3

0.7

5.4

0.9

6.7

1.1

8.2

1.3

10.1

   1.6
















D e

Nominal

Outside

Diameter Dn

Nominal Pressure   PN(kg/cm2)

   0.63MPa S16

0.80MPa S12.5

1.00MPa S10

1.25MPa S8

1.60MPa S6.3

   2.0MPa S5

   2.5MPa S4

emin

Tolerance

emin

Tolerance

emin

Tolerance

emin

Tolerance

emin

Tolerance

emin

Tolerance

emin

Tolerance

110

2.7

0.5

3.4

0.6

4.2

0.7

5.3

0.8

6.6

   1.1

8.1

1.3

12.3

1.9

125

3.1

0.6

3.9

0.6

4.8

0.8

6.0

0.9

7.4

   1.2

9.2

1.4

13.9

2.1

140

3.5

0.6

4.3

0.7

5.4

0.9

6.7

1.1

8.3

   1.3

10.3

1.6

15.7

2.4

160

4.0

0.6

4.9

0.8

6.2

1.0

7.7

1.2

9.5

   1.5

11.8

1.8

17.9

2.7

180

4.4

0.7

5.5

0.9

6.9

1.1

8.6

1.3

10.7

   1.7

13.3

2.0

20.0

3.0

200

4.9

0.8

6.2

1.0

7.7

1.2

9.6

1.5

11.9

   1.8

14.7

2.3

22.3

3.4

225

5.5

0.9

6.9

1.1

8.6

1.3

10.8

1.7

13.4

   2.1

16.6

2.5

25.1

3.8

250

6.2

1.0

7.7

1.2

9.6

1.5

11.9

1.8

14.8

   2.3

18.4

2.8

27.9

4.2
















D e

Nominal

Outside

Diameter Dn

Nominal Pressure   PN(kg/cm2)

   0.63MPa S16

0.80MPa S12.5

1.00MPa S10

1.25MPa S8

1.60MPa S6.3

   2.0MPa S5

   2.5MPa S4

emin

Tolerance

emin

Tolerance

emin

Tolerance

emin

Tolerance

emin

Tolerance

emin

Tolerance

emin

Tolerance

280

6.9

1.1

8.6

1.3

10.7

1.7

13.4

2.1

16.6

   2.5

20.6

3.1



315

7.7

1.2

9.7

1.5

12.1

1.9

15.0

2.3

18.7

   2.9

23.2

3.5



355

8.7

1.4

10.9

1.7

13.6

2.1

16.9

2.6

21.1

   3.2

26.1

4.0



400

9.8

1.5

12.3

1.9

15.3

2.3

19.1

2.9

23.7

   3.6

29.4

4.5



450

11.0

1.7

13.8

2.1

17.2

2.6

21.5

3.3

26.7

   4.1

33.1

4.9



500

12.3

1.9

15.3

2.3

19.1

2.9

23.9

3.6

29.7

   4.5

36.8

5.6



560

13.7

2.1

17.2

2.6

21.4

3.3

26.7

4.1







630

15.4

2.4

19.3

2.9

24.1

3.7

30.0

4.5







710

17.4

2.7

21.8

3.3

27.2

4.1









800

19.6

3.0

24.5

3.7

30.6

4.6
FAQ 1. Manufacturer or trading company? We are the manufacturer with our own factory. 2. What's the price? Our prices vary based on products, materials, sizes, and MOQ. They are highly competitive. Contact me for the latest price list. 3. What products do you produce? We mainly manufacture plastic valves, pipes, and fittings. We also develop group irrigation products and offer new mold and customization based on market needs. 4. Accept OEM? Yes. We provide trademark engraving, laser printing, color box packaging, design, pallet service, and customizable material formulas based on customer needs. 5. Provide related documents? Yes, upon request. 6. Lead time? Our lead time is 7-15 days, depending on your requirements. 7. Customized service? Yes, customized products as per customer needs. 8. Can I be a distributor? Yes. We're happy to cooperate worldwide. 9. Company address? Our company is in Tianjin, China. 10. How to contact? Email: info@hwpiping.com Phone: +86 188 2271 3223 WhatsApp/WeChat: +86 188 2271 3223
