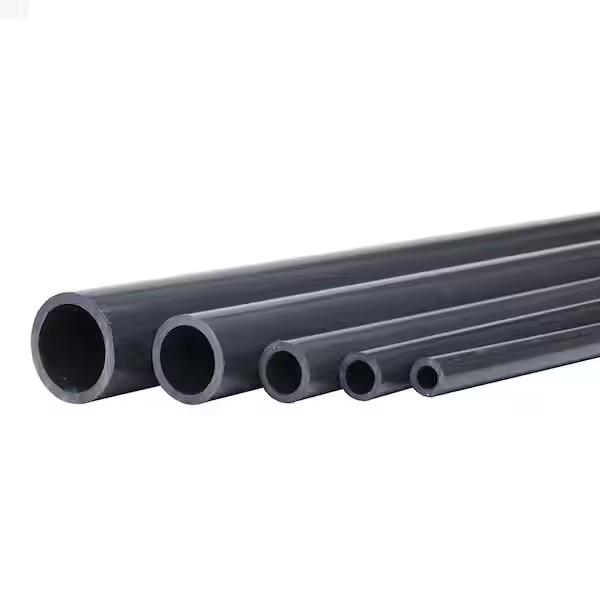

ASTM Standard PVC-C PIPE

   Item

   Unit

   Approval Standard

Test Method

Density

kg/m³

   1450-1650

Method A of GB/T 1033-1986

Vicat Softening Temperature(Pipes)

  “C

   2110

  GB/T 8802

Vicat Softening   Temperature(Fittings

  “C

   ≥103

  GB/T 8802

Longitudinal Reversion

  %

   ≤5

Method B of GB/T6671-2001

Chlorine Concerntration (Mass   Percent)

  %

   ≥60

  GB/T 6111

Hydrostatic Test

No crack,no leakage

  S01167

Hydrostatic Reheat Test

No crack,no leakage

  501167

Drop Impact Test

  %

TIR≤10%

  GB/T 14152

Oven Test

No lamination,no crack

  GB/T 8803

Modulus of Elasticity

   22482

  ASTM D638

Tensile Strength

  Mpa

   248.3

  ASTM D638

Impact Strength

  5J/m

   ≥80.

  ASTM D256

Coefficient of Linear Expansion

m/m℃

   7x10

Thermal Conductivity

w/m℃

   ≤0.13

  ASTM C177

Flame Retardant

Reset to zero

  UL-94

Outside Diameter

Outside Diameter

Tolerance

SCH40

5CH80

inch

(mm)

of Outside

Diameter(mm）

Thickness (mm）

Tolerance (mm）

Thickness (mm）

Tolerance (mm）

1/2"

21.34

±0.1

2.77

0.51

3.73

0.51

3/4”

26.67

±0.1

2.87

0.51

3.91

0.51

1"

33.4

±0.13

3.38

0.51

4.55

0.53

1 1/4”

42.16

±0.13

3.56

0.51

4.85

0.58

1 1/2"

48.26

±0.15

3.68

0.51

5.08

0.61

2"

60.32

±0.15

3.91

0.51

5.54

0.66

2 1/2”

73.02

40.18

5.16

0.61

7.01

0.84

3”

88.9

±0.20

5.49

0.66

7.62

0.91

4”

114.3

±0.23

6.02

0.71

8.56

1.02

5"

141.3

±0.25

6.55

0.79

9.52

1.14

6"

168.28

0.28

7.11

0.86

10.97

1.32

8"

219.08

0.38

8.18

0.99

12.7

1.52

10”

273.05

0.38

9.27

1.12

15.06

1.8

12”

323.85

0.38

10.31

1.24

17.45

2.08

14”

355.6

±0.38

11.1

1.35

19.05

2.29

16”

406.4

±0.48

12.7

1.52

21.41

2.57

18”

457.2

±0.48

14.27

1.7

23.8

2.84

20"

508

±0.58

15.06

1.8

26.19

3.15

24"

609.6

±0.79

17.45

2.08

30.94

3.71
