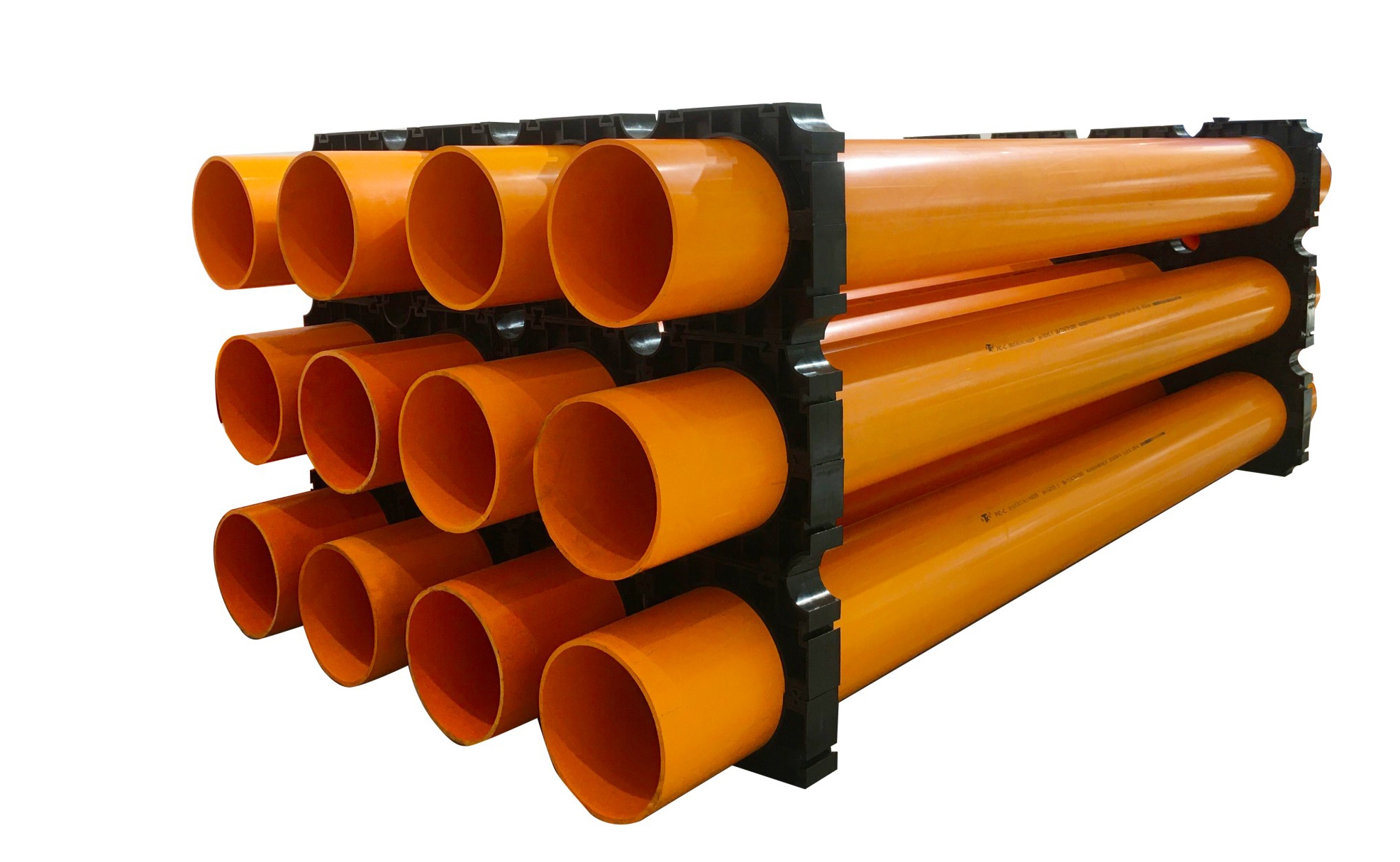

Product Overview:
l Non-conductive: excellent electricity insulation, which resists over 30kv voltage.Excellent resistance to aging and corrosion.Low friction.
l Size: full 75mm through 219mm availability
l High anti-stress: ring stiffness meet 10KN/㎡,
l Excellent heat-resistance, no change even over temperature up to 93℃.
l Fire-resistance: Flame-retardant PVC resin,highly combustion-retardant,quickly self-extinguishing.
l Colors: Orange
l Form Supplied:6 meters straight length (included belled end),Other forms are also available upon request.
l Joint Method: Glue(Solvent Cement ).
l Material: CPVC (Chlorinated polyvinyl chloride).
l Standard: QB/T 2479-2005.
Properties
Specification
OD(mm) | wall thickness(mm) | length(m) |
| OD(mm) | wall thickness(mm) | length(m) |
75 | 3 | 6 |
| 160 | 4 | 6 |
75 | 5 | 6 |
| 160 | 5 | 6 |
90 | 4 | 6 |
| 167 | 6 | 6 |
110 | 3.2 | 6 |
| 167 | 8 | 6 |
110 | 4 | 6 |
| 192 | 6.5 | 6 |
110 | 5 | 6 |
| 192 | 8.5 | 6 |
139 | 6 | 6 |
| 200 | 8.5 | 6 |
|
|
|
| 219 | 7 | 6 |
|
|
|
| 219 | 9.5 | 6 |
Application
l Urban power grid construction and reconstruction.
l Urban municipal reconstruction project.
l Civil airport project
l Industry zone 、housing estate.
l Layout power cable for traffic road, bridge and urban road-lighting.
