Introduction
l Standard Length: at any lengths as per your request
l Color: gray, blue, or any other color on request
l Specific Gravity: 1330--1460 kg/m³
l Working Pressure: from 0.6 Mpa to 2.5 Mpa; sch40, sch80; 2 bar to 25 bar; PN 6 to PN 25, class B to class7
l O.D.: from 16mm to 800mm; from 1/2 inch to 24 inch.
l Connection: Rubber ring or solvent cement
l Supports standard: ASTM, DIN, JIS, BS, AS/NS, EN
l Support OEM and ODM

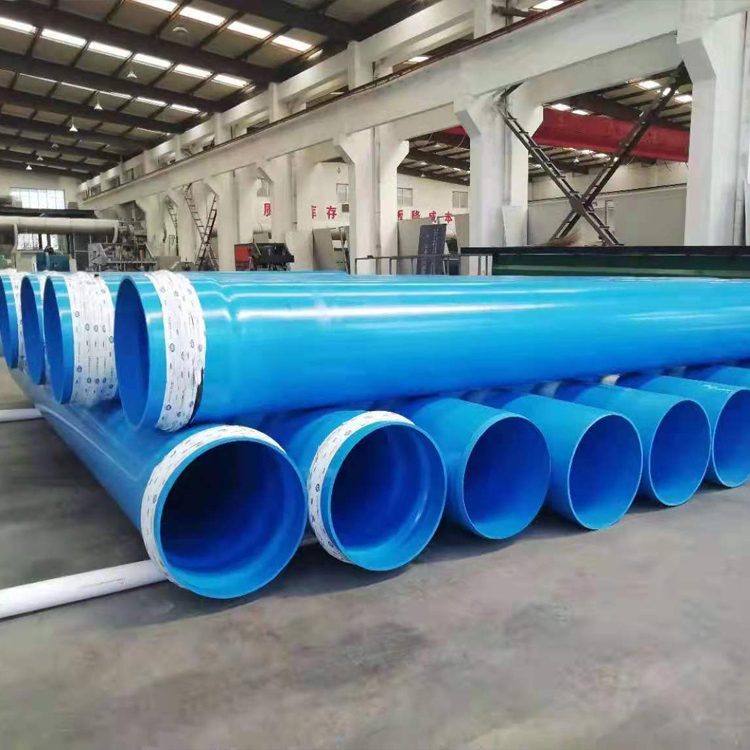

The impact resistant (PVC-M) pipes and fittings for water supply are a new type of plastic pipes and fittings with high toughness, which are mainly made of polyvinyl chloride resin as the main raw material and physically modified by adding composite impact modifiers. They are extruded or injected.
The effective addition of composite impact modifiers increases the ductility of the product while maintaining the high strength of PVC-U pipes. It also has the advantages of simple PVC-U pipe connection, straightness, and high impact resistance of PE pipes, making it a new type of plastic pipe fittings with excellent comprehensive performance.
This product is suitable for transporting domestic drinking water and general purpose water under pressure, especially in the low-temperature field, which can better demonstrate its performance advantages.
Standard of UPVC pipe for water supply
Type | Product Standards |
(DIN)PVC M Pipes For Water Supply | CJ/T 272,SANS966 GB/T 32018. 1 |
Temperature and working pressure curve
Working temperature ℃ | Compensation coefficient |
0<t<25 | 1.0 |
25<t<35 | 0.8 |
35<t≤45 | 0.63 |
Physical and Mechanical Properties |
item | Pipe | Fittings |
Density | 1350-1460kg/m³ |
|
Vicat Softening Temperature | ≥80℃ | ≥72 ℃ |
Longitudinal Retraction Rate | ≤5% |
|
Soaking in Dichloromethane (15℃,30min） | No damage on The surface of sample |
|
Oven Test | Conform to GB/T8803-2001 | Conform to GB/T8803-2001 |
Falling Weight Impact Test TIR | ≤5% |
|
High speed impact experiment ，22℃ DN ≥110mm | No rupture,no leakage |
|
Hydraulic Pressure test | No rupture,no leakage | No rupture,no leakage |
Hydrostatic test of cut pipe | No rupture,no leakage |
|
C-ring toughness experiment | ductile failure |
|
Long term hydrostatic test/MPa | ≥24.5 |
|
System Suitability Test | No rupture,no leakage | No rupture,no leakage |
Drop Test |
| No rupture |
Specification of DIN PVC-M Pipe CJ/T 272/GB/T 32018. 1 unit:mm
O.D.mm | S series ,SDR series pipes and nominal pressure |
S25 | S20 | S16 | S12.5 | S10 | S8 |
SDR51 | SDR41 | SDR33 | SDR26 | SDR21 | SDR17 |
PN0.63 | PN0.8 | PN1.0 | PN1.25 | PN1.6 | PN2.0 |
wall thickness, mm |
20 |
|
|
|
| 2 | 2 |
25 |
|
|
|
| 2 | 2 |
32 |
|
|
|
| 2 | 2 |
40 |
|
|
|
| 2 | 2.4 |
50 |
|
|
| 2 | 2.4 | 3 |
63 |
|
| 2 | 2.5 | 3 | 3.8 |
75 |
| 2 | 2.3 | 2.9 | 3.6 | 4.5 |
90 | 2 | 2.2 | 2.8 | 3.5 | 4.3 | 5.4 |
110 | 2.2 | 2.7 | 3.4 | 4.2 | 5.3 | 6.6 |
125 | 2.5 | 3.1 | 3.9 | 4.8 | 6 | 7.4 |
140 | 2.8 | 3.5 | 4.3 | 5.4 | 6.7 | 8.3 |
160 | 3.2 | 4 | 4.9 | 6.2 | 7.7 | 9.5 |
180 | 3.6 | 4.4 | 5.5 | 6.9 | 8.6 | 10.7 |
200 | 3.9 | 4.9 | 6.2 | 7.7 | 9.6 | 11.9 |
225 | 4.4 | 5.5 | 6.9 | 8.6 | 10.8 | 13.4 |
250 | 4.9 | 6.2 | 7.7 | 9.6 | 11.9 | 14.8 |
280 | 5.5 | 6.9 | 8.6 | 10.7 | 13.4 | 16.6 |
315 | 6.2 | 7.7 | 9.7 | 12.1 | 15 | 18.7 |
355 | 7 | 8.7 | 10.9 | 13.6 | 16.9 | 21.1 |
400 | 7.9 | 9.8 | 12.3 | 15.3 | 19.1 | 23.7 |
450 | 8.8 | 11 | 13.8 | 17.2 | 21.5 | 26.7 |
500 | 9.8 | 12.3 | 15.3 | 19.1 | 23.9 | 29.7 |
560 | 11 | 13.7 | 17.2 | 21.4 | 26.7 | 33.2 |
630 | 12.3 | 15.4 | 19.3 | 24.1 | 30 | 37.4 |
710 | 13.9 | 17.4 | 21.8 | 27.2 | 33.9 | 42.1 |
800 | 15.7 | 19.6 | 24.5 | 30.6 | 38.1 | 47.4 |
